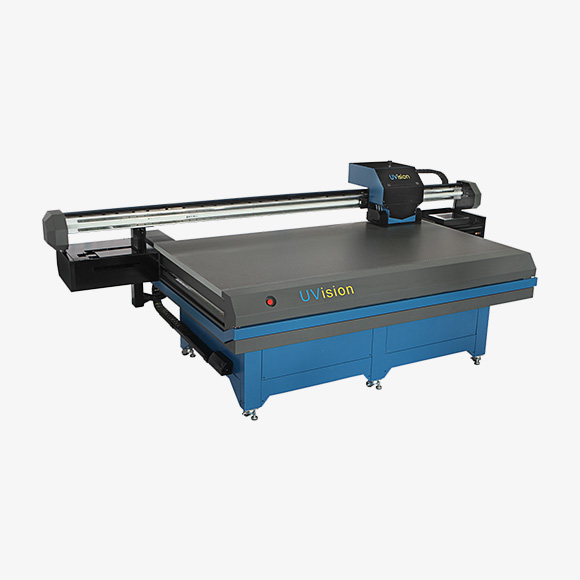

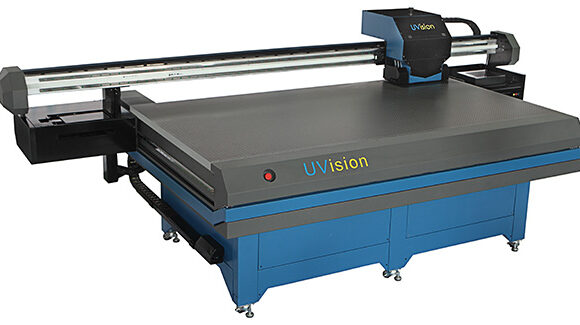

UVision Flatbed – 8 x 4 Ft

UVision Flatbed – 8 x 4 Ft

(0 Reviews)

Download Brochure

Availability: In Stock

Category: UV Flat Bed Printer

Features

High Speed & High Quality with small drop size from 3pl to 13pl.
Extremely reliable print quality with quality UV inks.
Water cooled & Air cooled UV LED curing system.
Extremely low noise with advance caged linear bearings.
Automatic Head height adjust with sensor or manual override.
Electrically controlled vacuum zones ensuring substrates are held flat when printing.
Precise ink control and digital negative pressure system.
Low power consumption.
Unique edge printing feature (optional)
Robust build and stable, designed to meet high quality printing requirements.
Designed and made in India.

Specification

Print Bed Size:

4 x 8 feet (1220 x 2439 mm)

Print Head:

Ricoh Gen5 – 7pl

LED UV Lamp:

Wave length – 395nm

Technology – LED water cooled

Life span – 15000 hrs

Print Color:

CMYK + W + V

Print Speed:

High – 285 sqft/hr (26.5 sqmt/hr)

Med (standard quality) – 185 sqft/hr (17.2 sqmtr/hr)

Low (High Quality) – 135 sqft/hr (12.5 sqmtr/hr)

Max Print Resolution:

1440 dpi

Substrate Height:

4 inch (100mm) OR 2 inch (50mm)

Vacuum Zones:

Three

Ink Type:

UV LED ink

Ink System:

Negative Pressure continuous ink supply system.

Approx Ink Consumption:

CMYK (without white layer) – 1ml/sqft (10ml/sqm), CMYK + white layer – 2ml/sqft (20ml/sqm)

RIP softwate:

StarRip

Operation System:

Win 8 – Win10

Power Supply

220v – 50hz

Working Condition:

Temperature – 22-28 C, Relative Humidity – 35-75 RH

Applications:

Any flat materials, eg – glass, ceramic tile, wood, PVC sheet, Sunpac, ACP sheet, metal sheet, etc.
