| Print Bed Size: |
10 x 7 feet (3048 x 2134 mm) |
| Print Head: |
Ricoh Gen5 – 7pl |
| LED UV Lamp: |
| Wave length – 395nm |
| Technology – LED water cooled |
| Life span – 15000 hrs |
|
| Print Color: |
CMYK + W + V |
| Print Speed on Gen5: |
| High – 285 sqft/hr (26.5 sqmt/hr) |
| Med (standard quality) – 185 sqft/hr (17.2 sqmtr/hr) |
| Low (High Quality) – 135 sqft/hr (12.5 sqmtr/hr) |
|
| Print Speed on GH220: |
| High – 100 sqft/hr (9.2 sqmt/hr) |
| Med (standard quality) – 70 sqft/hr (6.5 sqmtr/hr) |
| Low (High Quality) – 40 sqft/hr (3.7 sqmtr/hr) |
|
| Max Print Resolution: |
1440 dpi |
| Substrate Height: |
4 inch (100mm) OR 2 inch (50mm) |
| Vacuum Zones: |
Three |
| Ink Type: |
UV LED ink |
| Ink System: |
Negative Pressure continuous ink supply system. |
| Approx Ink Consumption: |
CMYK (without white layer) – 1ml/sqft (10ml/sqm), CMYK + white layer – 2ml/sqft (20ml/sqm) |
| RIP softwate: |
StarRip |
| Operation System: |
Win 8 – Win10 |
| Power Supply |
220v – 50hz |
| Working Condition: |
Temperature – 22-28 C, Relative Humidity – 35-75 RH |

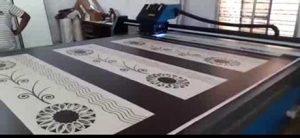

| Applications: |
Any flat materials, eg – glass, ceramic tile, wood, PVC sheet, Sunpac, ACP sheet, metal sheet, etc. |
