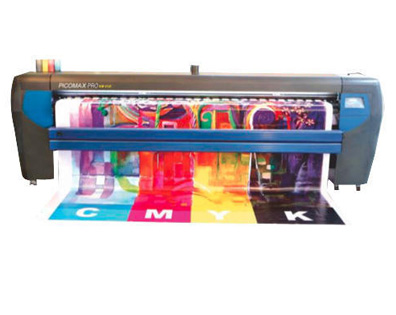

Picomax

Features Very High speed & High Quality Printing with advanced Macart Electronics and Macart’s Star RIP software. Heavy and Rugged structure. Low noise linear bearing. Powerful AC servo motor for high speed carriage motion. Powerful media griper for precise media displacement, Controlled media suction for accurate printing. Two zone media heating- Pre and Post Two…

Features

  • Very High speed & High Quality Printing with advanced Macart Electronics and Macart’s Star RIP software.
  • Heavy and Rugged structure.
  • Low noise linear bearing.
  • Powerful AC servo motor for high speed carriage motion.
  • Powerful media griper for precise media displacement,
  • Controlled media suction for accurate printing.
  • Two zone media heating- Pre and Post
  • Two fan channels for faster drying of print.
  • Auto head capping.
  • Dual control panel – software and printer.
  • ED light illuminated printing area.
  • Enhanced colours by advance Rip software.
  • Easy media roll loading from bottom.
  • Swing bar type Media releaser for sticky media.
  • Gravity ink feeding.
  • Teflon ink tubing for life upto 20 yrs & long head life.
  • Hard aluminum alloy timing pulleys for long life.
  • German belts.
  • Macart manufactured cable drag chain for smooth and long life.
  • Extremely low power consumption.
  • Power failure printing continuation function.
  • Many ICC colour profiles available for various media’s.
  • Solvent resistant paint.
  • Compact body.
  • More than 70% Aluminum body for very long life.
  • Made in India Electronics, easy to maintain and repair.

Specification

Printing Technology: Piezo Drop on Demand electric inkjet
Print Head: Konica Minolta KM512i or KM 512
Max Resolution: 720 dpi
Colors: CMYK – 16.7 million colors.
Speed: KM512i – 1200 sqft/hr – 2pass, 800 sqft/hr – 3 pass
KM512 – 450 sqft/hr – 2 pass, 300 sqft/hr – 3pass
Print width: 122 inches
Media Width: 126 inches
Media Type: Flex, Backlit flex, Vinyl, Clear Vinyl, Wall Paper, Canvas
Media Heater: Two – Front and Back plus air blower.
Ink: CMYK – Pigment based solvent inks
Software: StarRip
Interface: USB 2.0
Operating System: Win9 – Win10
Power requirements: 250 VAC, 50Hz Single phase
Power consumption: 350 W (Printer) – 900W (heater)
Working Condition: Temperature – 22-27 C
Relative Humidity – 35-75 RH
Similar Products

Related products

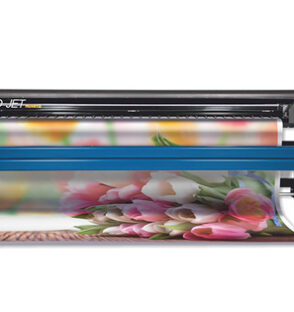

Picojet Pro
